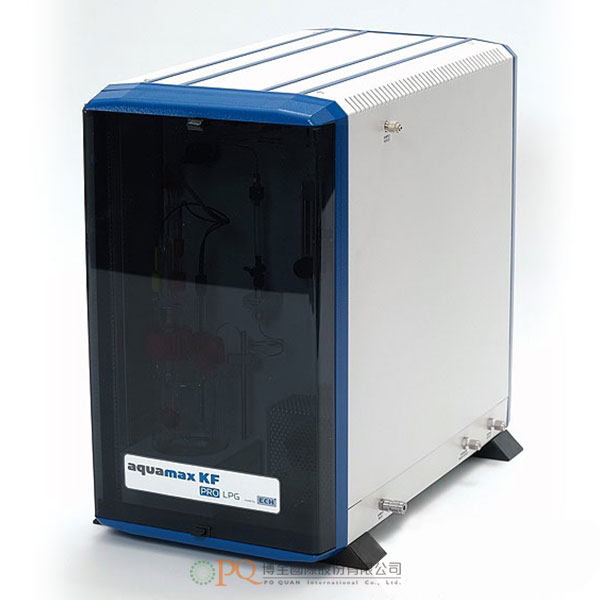

液化氣體水分測定儀

• Determination of moisture in liquefied and gaseous samples
• Inlet pressure up to 200 bar/2900 psi
• Determination of pressure in the sample loop
• Automatic pressure regulation
• Transfer line with direct injection
• Automatic rinsing bypass and steps for rinsing
• Measuring cell without diaphragm (only one electrolyte required)
• Setting of application-specific methods
• Sulphur trap eliminating the side reactions caused by sulphides/H2S
• Type of result: µg, ppm (gas volume), Vppm, Mppm, Mol ppm by using the formula generator

Areas of Application

LPG, LNG

• propane, propene, butane, butene, butadiene
• ethylene oxide
• chlorinated hydrocarbons, e. g. methylene chloride, ethylene chloride, vinyl chloride

Analysis of refrigerants:

• halogenated hydrocarbons

Analysis of permanent gases:

• natural gas
• technical gases
• mixtures of test gases

Advantages

• Sulphur removal cartridge eliminating the side reactions caused by sulphides/H2S
• No interference calculation required
• 250 measurements can be performed in 48 hours
• Totally automated process, no operator input required for the test
• Suitable to test all gas types without any calibration or adjustments
• No separate rinsing gas is required
• Rinsing process is fully automated
• No balance is required
• High sample throughput and long reagent life
• Compact device
