模擬輸入模組 (需搭配主機 Online4US)

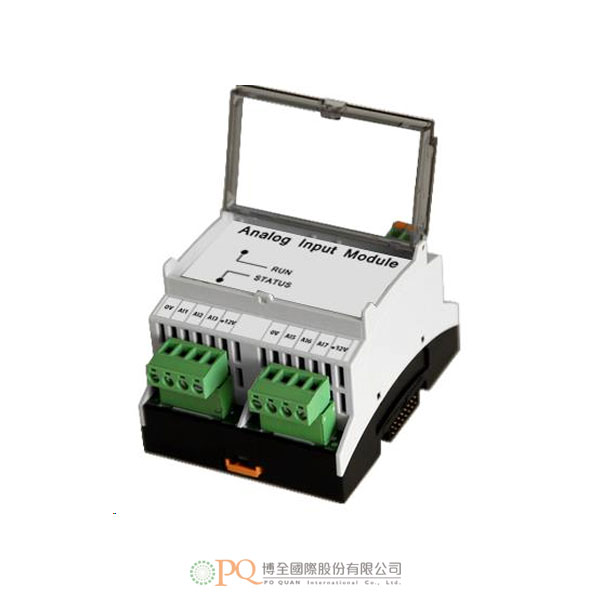

Online4US Module AIM (Analog Input Module) 型號：Analog Input Module

產品特點產品規格 Features Specifications

一般
功能	模擬輸入，用於信號採集觸發
處理器	ARM Cortex-M3 @ 72MHz
輸入通道	8個電絕緣數字輸入
環境
操作溫度範圍	-20 to +55 °C ( -4 to 131°F)
基本
材料	聚碳酸酯纖維
尺寸	71.6x89.7x54.9 mm (2.80”x3.50”x2.13”)
安裝	35 mm DIN-rail
重量	125g ( 4.4oz)
電源
供應電源	24VDC +/- 10% (通過內部DIN導軌連接使用主電源，無需外部接線)
功耗	≈50mA
電力
電源參考	內部提供隔離的12VDC（無需外部接線）
最小輸入電壓	0VDC
最大輸入電壓	12VDC
輸入電阻	> 200k
解析度	8bits
採樣速率	160 ms

The analog input module transforms analog signals (0-10 VDC) into a digital format.
Analog inputs are used：
- For variable speed machinery whose speed rotation is given by an analog tachometer;
- For interfacing temperature sensors.

General
Function	Analog input for signal acquisition triggering
Processor	ARM Cortex-M3 @ 72MHz
Input channel	8 electrically insulated digital inputs
Environmental
Operating temperature range	-20 to +55 °C \| -4 to 131°F
Mechanical
Housing material	Polycarbonate
Dimensions housing	71.6x89.7x54.9 mm \| 2.80”x3.50”x2.13”
Mounting	35 mm DIN-rail
Weight	125g \| 4.4oz
Power
Power supply	24VDC +/- 10% (uses main power supply through internal DIN-rail connection, no external wiring is needed)
Power consumption	≈50mA
Electrical
Power reference	Isolated 12VDC internally provided (no external wiring is needed)
Minimum input voltage	0VDC
Maximum Input voltage	12VDC
Input resistance	> 200k
Resolution	8bits
Acquisition time	160 ms
