60 dB 射頻屏蔽織物

非常適合屏蔽窗框、窗戶等。108 dB 的超高衰減（電場）。

Aaronia 推出新型不銹鋼屏蔽織物 Aaronia Mesh。 它是工業、軍事、研究和開發應用的理想選擇。 Aaronia Mesh 專為在極端條件下（鹽霧、極端溫度、真空等）使用而設計。

典型的應用包括：室內外窗戶和窗戶表面的屏蔽（由於具有極佳的透明度）、電磁相容性測試室的建造以及溫度影響較大的單個組件的屏蔽。 由於其防銹性能，它也是電磁相容艙室內通風、通風口和孔洞的理想電磁相容封罩材料。

Aaronia 網布由 100% 的不銹鋼製成，溫度穩定性高達 600 攝氏度，具有極高的衰減性和透氣性。 這種材料能可靠地衰減電場和磁場。 特別是在kHz和MHz範圍內。同時，Aaronia 網布具有極高的屏蔽係數，高達 108dB（電場），且易於加工，用標準的剪刀就能剪開。

功能特點

• 透明度高。
• 不生鏽、防凍。
• 可塗漆、折疊。
• 適用於摄氏 600 度左右的環境。
• 即使在非常低的頻率下亦具有超高的阻尼。

Perfect for shielding of window frames, windows etc. Very high attenuation of 108 dB (E-Field).

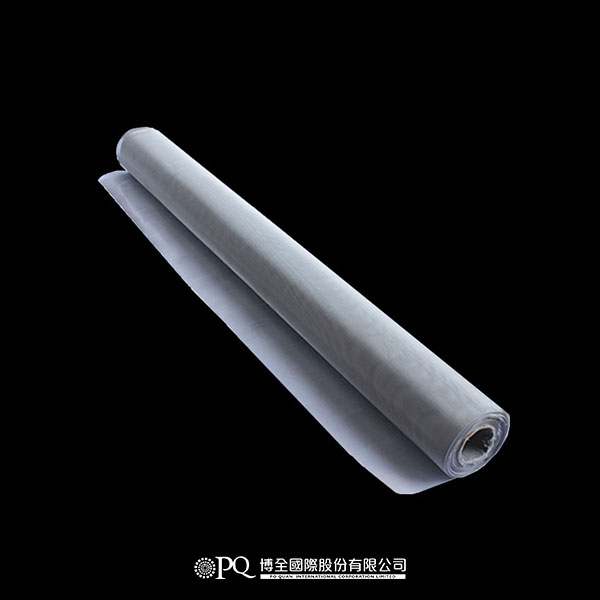

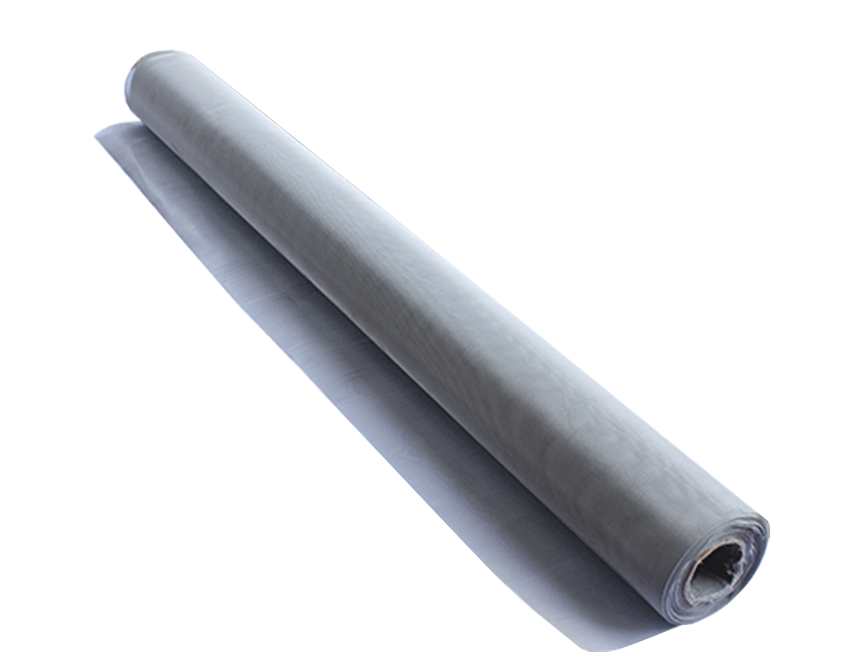

Aaronia presents the new stainless steel shielding fabric Aaronia Mesh. Ideal for industrial applications as well as for military, research and development. Aaronia mesh has been specifically designed for use under extreme conditions (salt air, extreme temperatures, vacuum, etc.).

Typical applications are for example shielding of windows and window surfaces indoors and outdoors (due to the excellent transparency), construction of EMC test chambers and shielding of individual components that are under large temperature effects. Also ideal for EMC sealing of ventilation, ventilation diffusers and holes in EMC cabins due to its resistance to rust.

Aaronia mesh is made of 100% stainless steel, is temperature stable up to 600 degrees Celsius, has an extremely high attenuation, yet is extremely breathable. The material reliably attenuates E & H fields. In particular, in the kHz and low MHz range Aaronia mesh offers an extremely high shielding factor of up to 108dB (E-field). Aaronia mesh is easy to process and can be cut with a standard pair of scissors.

Features

• Very transparent
• Rot and frost proof
• Paintable, Foldable
• Usable until about 600 degrees Celsius
• Ultra high damping even at very low frequencies
