交流阻抗架構

ACIS System

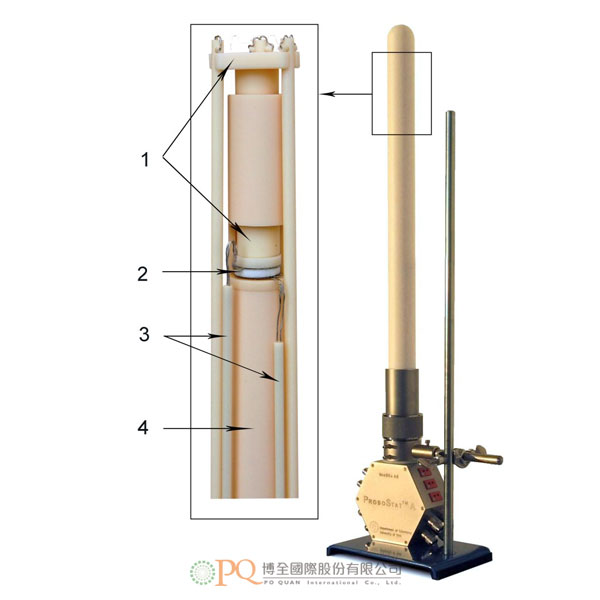

ProboStat™ ACIS is a sample holder dedicated for AC conductivity measurements and 2-electrode impedance spectroscopy on small disk samples at high temperatures and under controlled atmospheres. Special design of the hot-zone parts facilitates mounting and replacement of test samples compared with the standard ProboStat™ furnishment. The test sample rests in a support tube, is contacted by electrode connects, and held stably in place with a spring load assembly. The setup is assembled in a single chamber mode and can be fed with virtually any gas. The sample holder is designed to operate at near-atmospheric pressure, but can be pumped to low vacuum, or hold up to 15 bar. Electrical connections are made via standard coax cables.

加入洽詢

產品特點產品規格 Features Specifications

The system is supplied with a standard ProboStat™ base unit and can be expanded for any sample geometries and measurements that ProboStat™ can support.

The ProboStat™ ACIS works well with all instrumentation such as impedance spectrometers, LCR meters and potentiostats from Solartron, PAR, Novocontrol, Autolab, Gamry, HP/Agilent, etc.
Temperature range:
- RT - 1600 °C
Atmospheres:
- Oxidizing, inert, reducing
- Wet, dry
- Corrosive optional
- 0.01 mbar - 1 bar (15 bar optional)
Base unit:
- 6 BNC electrode connections
- 3 thermocouple connections
- 4 Swagelok quick-connects - two gas in and two gas out
- 16 mini-contacts for detachable electrode contacts and thermocouples
- 3 switches for grounding and shielding options
- Cooling/heating water hose fittings
Hot zone parts:
- Specially designed sample support tube of alumina
- Spring-load assembly of alumina
- 2 electrode contacts: Pt+alumina
- Thermocouple: type S or K
Test sample size:
- Disk diameter: max 15 mm
- Height: max 10 mm
Outer system dimentions:
- Enclosing tube diameter: 40 mm
- Overall length: 75 cm
Materials properties measured and applicable methods:
- AC conductivity vs T, pO2, pH2O, etc.
- Impedance spectroscopy
- Bulk, grain boundary and electrode impedance
- H/D isotope effect
- Fuel cell components test
- Dielectric properties
The system is supplied with a standard ProboStat™ base unit and can be expanded for any sample geometries and measurements that ProboStat™ can support.

The ProboStat™ ACIS works well with all instrumentation such as impedance spectrometers, LCR meters and potentiostats from Solartron, PAR, Novocontrol, Autolab, Gamry, HP/Agilent, etc.
Temperature range:
- RT - 1600 °C
Atmospheres:
- Oxidizing, inert, reducing
- Wet, dry
- Corrosive optional
- 0.01 mbar - 1 bar (15 bar optional)
Base unit:
- 6 BNC electrode connections
- 3 thermocouple connections
- 4 Swagelok quick-connects - two gas in and two gas out
- 16 mini-contacts for detachable electrode contacts and thermocouples
- 3 switches for grounding and shielding options
- Cooling/heating water hose fittings
Hot zone parts:
- Specially designed sample support tube of alumina
- Spring-load assembly of alumina
- 2 electrode contacts: Pt+alumina
- Thermocouple: type S or K
Test sample size:
- Disk diameter: max 15 mm
- Height: max 10 mm
Outer system dimentions:
- Enclosing tube diameter: 40 mm
- Overall length: 75 cm
Materials properties measured and applicable methods:
- AC conductivity vs T, pO2, pH2O, etc.
- Impedance spectroscopy
- Bulk, grain boundary and electrode impedance
- H/D isotope effect
- Fuel cell components test
- Dielectric properties
