4-16通道線上振動監測系統

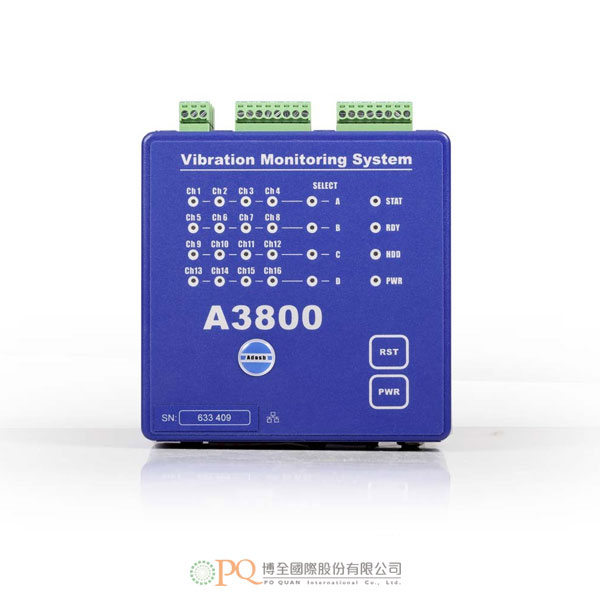

Online vibration monitoring system 型號：A3800

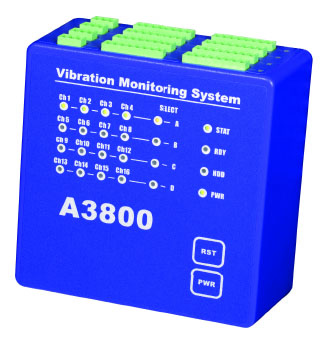

A3800 是一款緊湊型線上監測和診斷系統，旨在提高機器可靠性。A3800 的緊湊尺寸使其可以直接放置在配電盤的 DIN 導軌上。

A3800 設備具有可選數量的交流和直流輸入通道 - 4、8、12 或 16。交流和直流通道是獨立的。這意謂著 4 通道配置允許您連接 4 個交流通道和 4 個直流通道。根據有效輸入通道的數量，您可以使用1-4個獨立的TACHO( 轉速計 ) 輸入。未來有效通道的數量，可以通過購買額外的許可來擴展。

每組 4 個通道允許完全同時進行測量。每組 4 個輸入通道通過多路復用器相互切換。A3800 裝置還可用作強大的多通道振動分析儀。 A3800 單元的設置和控制是在 DDS 軟體中完成的。

加入洽詢

產品特點產品規格 Features Specifications

A3800 是一款緊湊型線上監測和診斷系統，旨在提高機器可靠性。A3800 的緊湊尺寸使其可以直接放置在配電盤的 DIN 導軌上。

A3800 設備具有可選數量的交流和直流輸入通道 - 4、8、12 或 16。交流和直流通道是獨立的。這意謂著 4 通道配置允許您連接 4 個交流通道和 4 個直流通道。根據有效輸入通道的數量，您可以使用1-4個獨立的TACHO( 轉速計 ) 輸入。未來有效通道的數量，可以通過購買額外的許可來擴展。

每組 4 個通道允許完全同時進行測量。每組 4 個輸入通道通過多路復用器相互切換。A3800 裝置還可用作強大的多通道振動分析儀。 A3800 單元的設置和控制是在 DDS 軟體中完成的。
訪問Adash官網，查看更多可靠性設備。

A3800
› 4 - 16 channels AC
› 4 - 16 channels DC
› 1 - 4 TACHO inputs

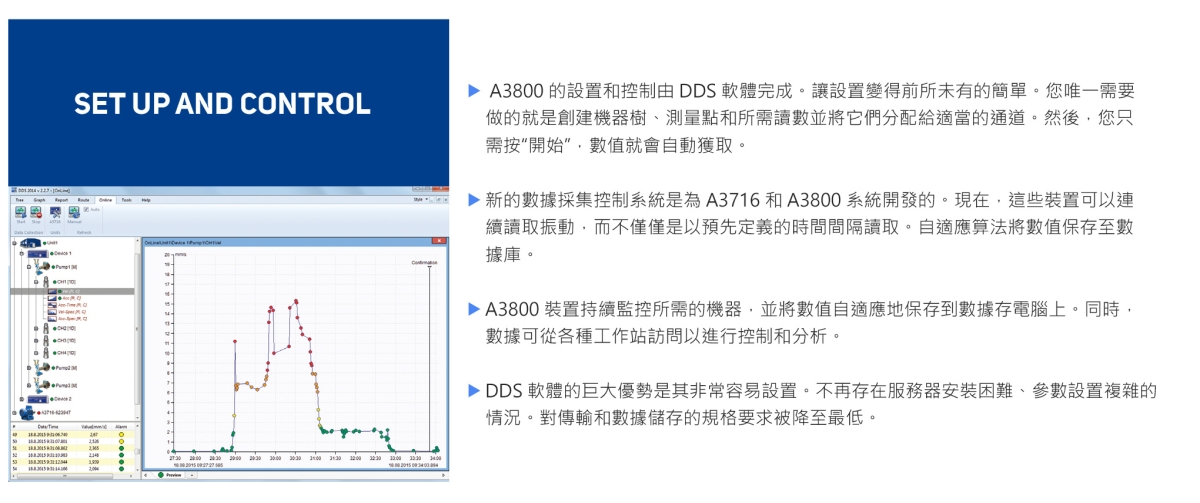

設置和控制

A3800單元的應用方案

Input channels AC:	4 - 16 AC, ICP^® power supply on/off input impedance 100kQ integration single, double high pass filter 1 Hz - 12 800 Hz low pass filter 25 Hz - 25 600 Hz
Input channels DC:	4 - 16 DC for process values input impedance 100 kQ (VDC), 250 Q (MADC)
TACHO inputs:	1 - 4 independent TACHO for external trigger speed range 0,8 Hz - 1000 Hz
Input range:	AC +/-12 V peak-peak DC +/- 24 Vor 4 - 20 mA TACHO +10V
AD conversion:	24 bit, 64 bit double floating point internal signal processing No AutoGain function!
Dynamic range S/N:	120 dB
Frequency ranges:	max. 25,6 kHz (16 Ch, 65,5 kHz sampling)
Sampling mode:	Fully simultaneous for group of 4 channels
FFT resolution:	Min. 100 lines Max. 25 600 lines
Processor:	Intel Atom E3815 - 1.46 GHz
Memory RAM:	2 GB
Internal data disc:	SSD 32 GB
Data acquisition:	Overall values Time signals FFT real time analysis DEMOD - ENVELOPE analysis ACMT - low speed bearing analysis order analysis user band pass analysis RPM measurement DC measurement Orbit measurement Speed measurement
Signal Recorder:	64 kHz sampling frequency 4 Ch memory consumption 3 GB/hour 4 Ch total recording - 10 hours
Trigger:	free run, TACHO, external (voltage)
Communication:	Ethernet 1GB RJ45
Temperature range:	-10°C to +50°C
Power:	DC 12 V
Case:	aluminium box
Size & Weight:	117 x 117 x 58 mm (without connectors) 800g

The A3800 is a compact size on-line monitoring and diagnostic system designed to increase machine reliability. The compact size of the A3800 enables it to be placed directly on the DIN rail in the switchboard.

The A3800 unit has an optional number of AC and DC input channels - 4, 8, 12 or 16. AC and DC channels are separate. This means that the 4-channel confi guration allows you to connect 4 AC and 4 DC channels. Depending on the number of active input channels, we can use 1 - 4 independent TACHO inputs. The number of active channels can be extended additionally by purchasing additional licenses.

Each group of 4 channels allows fully simultaneous measurements. Groups of 4 input channels are switched to each other via a multiplex.The A3800 unit can be used also as a powerful multichannel analyzer. The setting and control of A3800 unit is done in DDS software.
Please see more at www.adash.com and come back to us for further assistance with your purchase.

A3800
› 4 - 16 channels AC
› 4 - 16 channels DC
› 1 - 4 TACHO inputs

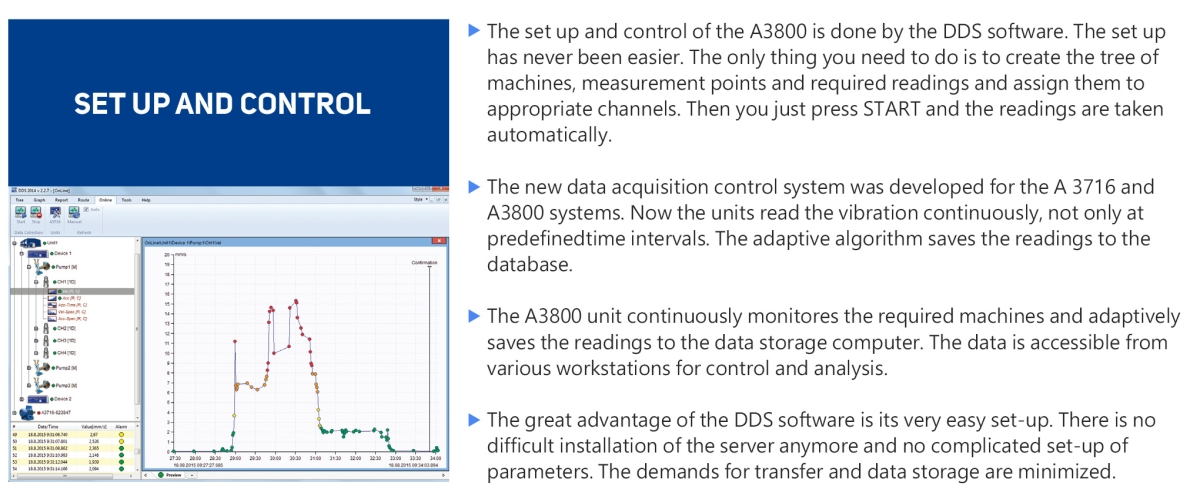

Set Up And Control

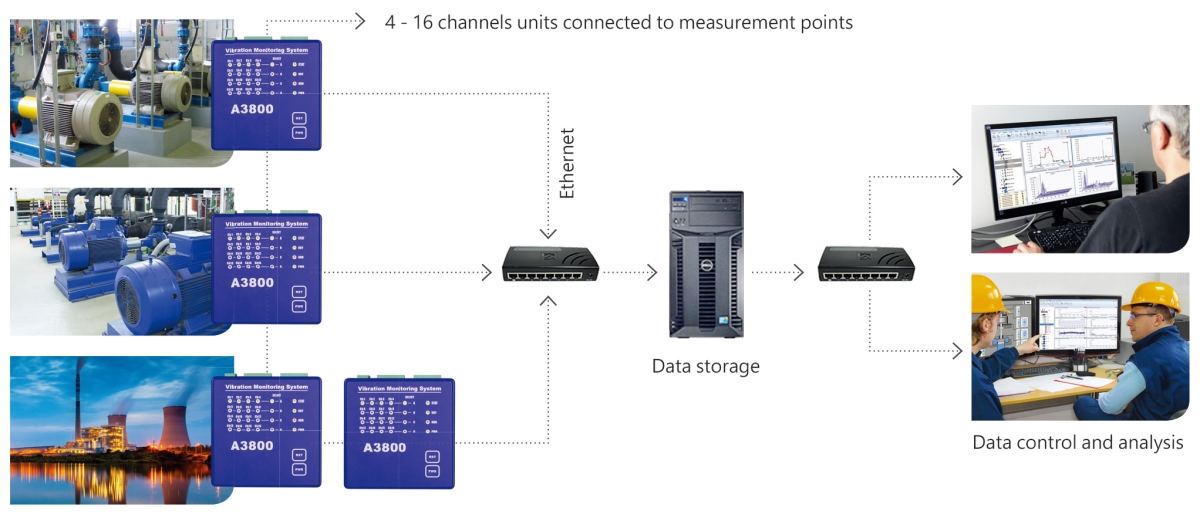

Application Scheme Of A3800 Units

Input channels AC:	4 - 16 AC, ICP^® power supply on/off input impedance 100kQ integration single, double high pass filter 1 Hz - 12 800 Hz low pass filter 25 Hz - 25 600 Hz
Input channels DC:	4 - 16 DC for process values input impedance 100 kQ (VDC), 250 Q (MADC)
TACHO inputs:	1 - 4 independent TACHO for external trigger speed range 0,8 Hz - 1000 Hz
Input range:	AC +/-12 V peak-peak DC +/- 24 Vor 4 - 20 mA TACHO +10V
AD conversion:	24 bit, 64 bit double floating point internal signal processing No AutoGain function!
Dynamic range S/N:	120 dB
Frequency ranges:	max. 25,6 kHz (16 Ch, 65,5 kHz sampling)
Sampling mode:	Fully simultaneous for group of 4 channels
FFT resolution:	Min. 100 lines Max. 25 600 lines
Processor:	Intel Atom E3815 - 1.46 GHz
Memory RAM:	2 GB
Internal data disc:	SSD 32 GB
Data acquisition:	Overall values Time signals FFT real time analysis DEMOD - ENVELOPE analysis ACMT - low speed bearing analysis order analysis user band pass analysis RPM measurement DC measurement Orbit measurement Speed measurement
Signal Recorder:	64 kHz sampling frequency 4 Ch memory consumption 3 GB/hour 4 Ch total recording - 10 hours
Trigger:	free run, TACHO, external (voltage)
Communication:	Ethernet 1GB RJ45
Temperature range:	-10°C to +50°C
Power:	DC 12 V
Case:	aluminium box
Size & Weight:	117 x 117 x 58 mm (without connectors) 800g
