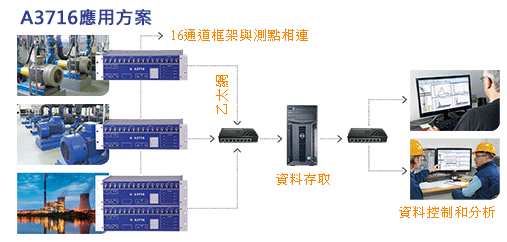

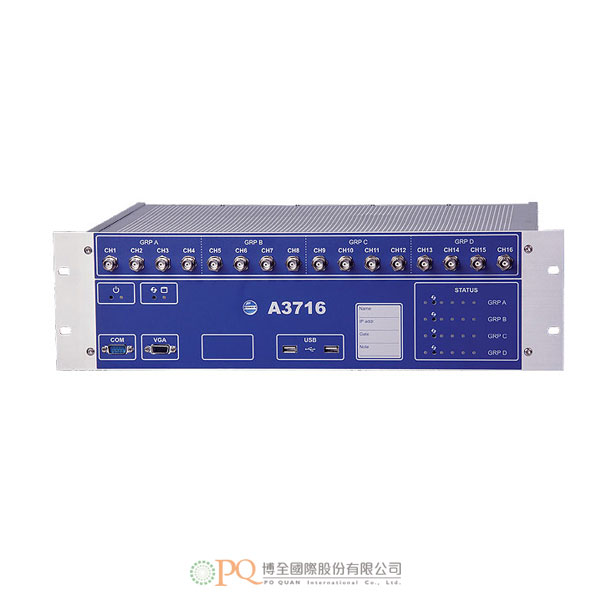

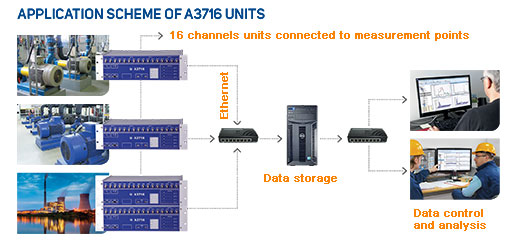

A3716 線上監測系統

16+ Channel Online Monitoring System 型號：A3716

A3716是一款功能強大的旋轉機械線上監測系統。 A3716系統可以作為獨立的監控系統運行，也可以作為現有保護系統的擴展。
A3716模組包含16個AC，16個DC和4個轉速/鍵相輸入。所有通道同步測量。A3716模組可輕鬆組合，以創建具有更多通道的系統。

產品特點產品規格 Features Specifications

- A3716的設置和控制由DDS軟體完成。設置就是如此簡單。您唯一需要做的就是創建機器樹，測量點和所需的讀數，並將它們分配到適當的通道。然後您只需按START鍵即可自動獲取讀數。
- 我們為A3716開發了新的資料獲取控制系統。目前該系統可以連續不間斷地讀取資料，而不僅僅是在預定義的時間間隔。系統的自我調整演算法將保存這些讀數到資料庫。
- A3716系統連續監測設備，並自動將讀數保存到資料存取電腦。可以從各個工作站訪問資料以進行控制和分析。
- DDS軟體的巨大優勢在於其非常簡單的設置。伺服器不再難以安裝，也沒有複雜的參數設置。對傳輸和資料存儲的需求最小化。
訪問Adash官網，查看更多可靠性設備。

輸入通道AC	16 AC, ICP®供電可打開/關閉輸入阻抗100kΩ 一次/二次積分高通濾波器1Hz - 12800Hz低通濾波器25Hz - 25600Hz
輸入通道DC	16 DC，用於過程量輸入阻抗100kΩ(VDC), 250Ω(mADC)
轉速/鍵相輸入	4個獨立轉速/鍵相通道轉速範圍0.8 Hz - 1000 Hz
輸入範圍	AC+/- 12V峰峰值 DC+/- 24V或4 - 20mA 轉速+10V AD轉換24位元，64位元內部信號處理
動態範圍	120dB
頻率範圍	最大25.6 kHz （16通道，65.5kHz採樣頻率）
採樣模式	16通道完全同步
FFT解析度	最小100線最大25600線
處理器	Intel Core2 - 2.5 GHz
記憶體	4 GB
內部硬碟	SSD 128GB
資料獲取	振動總量時域波形即時FFT分析調製解調 - 包絡分析ACMT - 低速軸承分析階次分析用戶自訂頻段分析 RPM測量DC測量軸心軌跡轉速測量
信號錄波	64 kHz採樣頻率 4通道存儲容量消耗 3 GB/小時 4 Ch總計時長 - 35小時
觸發	自由運行、轉速/鍵相、外部（電壓）
通訊	乙太網1GB RJ45
溫度範圍	-10˚C到+50˚C
電源	AC 110 - 240 V, 45 - 65 Hz
外殼	19''鋁制框架
尺寸&重量（2U）	430 x 360 x 90 mm 4.7 kg
尺寸&重量（3U）	430 x 360 x 135 mm 6.2 kg

- The set up and control of the A3716 is done by the DDS software. The set up has never been easier. The only thing you need to do is to create the tree of machines, measurement points and required readings and assign them to appropriate channels. Then you just press START and the readings are taken automatically.
- The new data acquisition control system was developed for the A3716. Now the unit reads the vibration continuously, not only at predefined time intervals. The adaptive algorithm saves the readings to the database.
- The A3716 unit continuously monitores the required machines and;adaptively saves the readings to the data storage computer. The data is accessible from various workstations for control and analysis.
- The great advantage of the DDS software is its very easy set-up. There is no difficult installation of the server anymore and no complicated set-up of parameters. The demands for transfer and data storage are;minimized.
Please see more at www.adash.com and come back to us for further assistance with your purchase.

input channels Ac	16 AC, ICP® power supply on/off input impedance 100kΩ integration single, double high pass filter 1 Hz - 12 800 Hz low pass filter 25 Hz - 25 600 Hz
input channels Dc	16 DC for process values input impedance 100 kΩ (VDC), 250 Ω (mADC)
tAcho inputs	4 independent TACHO for external trigger speed range 0,8 Hz - 1000 Hz
input range	AC +/- 12 V peak-peak DC +/- 24 V or 4 - 20 mA TACHO +10V
AD conversion	24 bit, 64 bit double floating point internal signal processing No AutoGain function!
Dynamic range s/n	120 dB
frequency ranges	max. 25,6 kHz (16 Ch, 65,5 kHz sampling)
sampling mode	Fully simultaneous for 16 channels
fft resolution	Min. 100 lines Max. 25 600 lines
processor	Intel Core2 - 2.5 GHz
memory RAm	4 GB
internal data disc	SSD 128GB
Data acquisition	Overall values Time signals FFT real time analysis DEMOD - ENVELOPE analysis ACMT - low speed bearing analysis order analysis user band pass analysis RPM measurement DC measurement Orbit measurement Speed measurement
signal Recorder	64 kHz sampling frequency 4 Ch memory consumption 3 GB/hour 4 Ch total recording - 35 hours
trigger	free run, TACHO, external (voltage)
communication	Ethernet 1GB RJ45
temperature range	-10˚C to +50˚C
power	AC 110 - 240 V, 45 - 65 Hz
case	19´´aluminium rack
size & Weight (2u)	430 x 360 x 90 mm 4,7 kg
size & Weight (3u)	430 x 360 x 135 mm 6,2 kg
