SDT > 超音波測漏設備

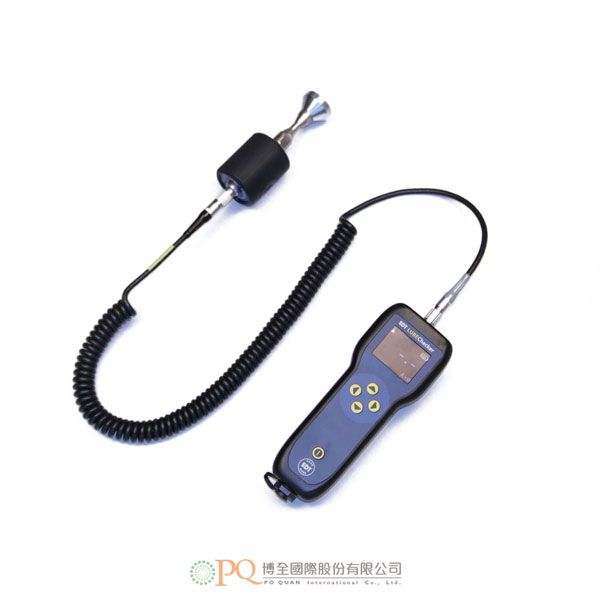

LUBEChecker 超音波測漏設備

LUBEChecker 型號：LUBEChecker

LUBEChecker是專注於優化油脂補充的超音波解決方案。它是根據條件間隔進行潤滑的完美助手。
非常易於使用。只需打開包裝盒，將其連接感測器，然後聽一下區別。其鮮豔的彩螢幕可提供可重複的、準確的數字測量結果，每次都可引導您獲得精確的結果。
軸承故障和過度的油脂消耗超出你的底線，LUBEChecker潤滑檢測儀是你可以負擔得起的解決方案，建立在SDT一貫的高品質基礎上，以一個好的價格讓您聽取更多的聲音。

產品特點產品規格 Features Specifications

- LUBEChecker是專注於優化油脂補充的超音波解決方案。它是根據條件間隔進行潤滑的完美助手。
- 非常易於使用。只需打開包裝盒，將其連接感測器，然後聽一下區別。其鮮豔的彩螢幕可提供可重複的、準確的數字測量結果，每次都可引導您獲得精確的結果。
- 軸承故障和過度的油脂消耗超出你的底線，LUBEChecker潤滑檢測儀是你可以負擔得起的解決方案，建立在SDT一貫的高品質基礎上，以一個好的價格讓您聽取更多的聲音。

功能	超音波檢測設備
可支援的	SDT LUBEsense 潤滑感測器
測量通道	1個7針LEMO通道
顯示	160 x128 像素的彩色OLED
按鍵	5個功能鍵
測量範圍	-6 到 99.9 dBμV（參考0 dB = 1μV，解析度0.1 dBμV）
檢測頻帶	35 to 42 kHz
信號放大	+30 to +102 in steps of 6 dB
回應時間	< 9毫秒
環境
工作溫度範圍	-10 to +50 °C /14 to 122°F
防護等級	IP42
設備
材料和重量	ABS, 164g \| 5.78oz
尺寸大小	158x59x38.5 mm /6.22”x2.32”x1.51”
感測器連接	7針LEMO連接
電源
電池	2個5號電池
待機	4小時
音訊
放大率	-24 to 0 dB by step of 6 dB
最大輸出	+83dB SPL with 25dB NRR Peltor HQ SDT 耳機

- Poor lubrication practices are a leading cause of bearing failure. LUBEChecker is an ultrasound solution focused on optimizing grease replenishment. It is the perfect companion for performing lubrication on condition based intervals.
- LUBEChecker is so easy to use. Simply open the box, connect it to your grease gun, and hear the difference. Its vibrant colour display offers repeatable, accurate, digital measurements that guide you to a precision result every time.
- Failed bearings and excessive grease consumption gnaw away at your bottom line. LUBEChecker is the affordable solution. Built with SDT quality, it’s offered at a price that makes you want to Hear More.

General
Function	Ultrasound measurement device
Operable with	LUBESense1
Measurement interface	1 channel via a 7 pole LEMO connector
Display	160x128 pixels Color OLED
Keyboard	5 function keys
Typical measurement range	-6 to 99.9 dBµV (reference 0 dB = 1 µV)
Resolution	0.1 digits
Measurement bandwidth	35 to 42 kHz
Signal amplification	+30 dB to +102 dB by step of 6 dB
RMS period time	250 milliseconds (main screen)
Sampling frequency	64 kHz/ksps
ADC Resolution	12 bits
Environmental
Operating temperature range	-10 to +50 °C \|14 to 122°F
IP rating	IP42
EMC approvals	EN 61326-1:2013, EN 55011:2016 + A1:2017, EN 61000-4-2:2009, EN 61000-4-3:2006 + A1:2008 + IS1:2009 +A2:2010
Mechanical
Housing material	ABS
Dimensions housing	158x59x38.5 mm \|6.22”x2.32”x1.51”
Weight	164g \| 5.78oz
Battery/Utility connector	USB Mini-B 5-pin
Power
Battery	2 AA batteries
Autonomy	7 hours
Audio
Operable with	SDT provided head set only
Maximum audio output (protection)	+83dB SPL with SDT headset
Headset	25 dB NRR Peltor quality heaphones
