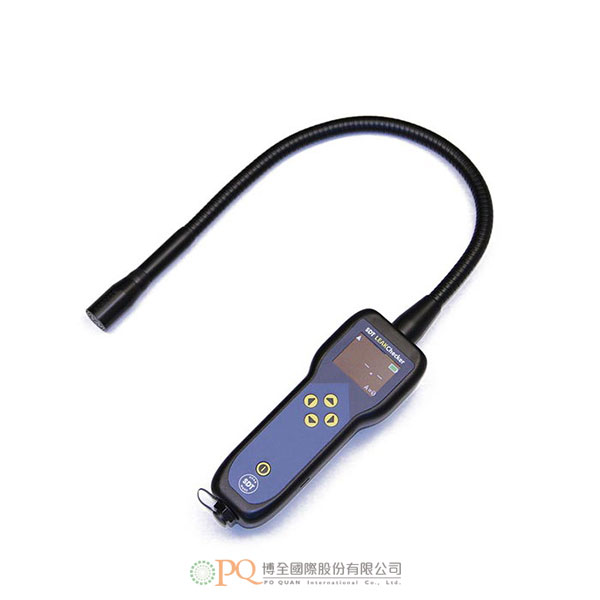

LEAKChecker 超音波測漏設備

LEAKChecker 型號:LEAKChecker
  • 能快速找到壓縮氣體洩漏的位置並修復它們,是一種專注於減少浪費,節約金錢的超音波解決方案。
  • 非常易於使用。只需打開包裝盒,將儀器打開,然後開始查找洩漏。享受耳機清晰的聲音和鮮豔的彩色顯示屏。LEAKChecker使洩漏測量再次變得有趣。
  • 氣體洩漏是一個代價昂貴的問題… LEAKChecker不僅是一個經濟型解決方案.,而且它秉持了SDT一貫的高品質傳統。
    • 能快速找到壓縮氣體洩漏的位置並修復它們,是一種專注於減少浪費,節約金錢的超音波解決方案。
    • 非常易於使用。只需打開包裝盒,將儀器打開,然後開始查找洩漏。享受耳機清晰的聲音和鮮豔的彩色顯示屏。LEAKChecker使洩漏測量再次變得有趣。
    • 氣體洩漏是一個代價昂貴的問題… LEAKChecker不僅是一個經濟型解決方案.,而且它秉持了SDT一貫的高品質傳統。
  • 常規
    功能 超音波檢測設備
    顯示 160 x128 像素彩色OLED
    按鍵 5個功能鍵
    測量範圍 -6 到 99.9 dBμV(參考0 dB = 1μV,解析度0.1 dBμV)
    檢測頻帶 35 to 42 kHz
    信號放大 +30 to +102 in steps of 6 dB
    回應時間 <9毫秒
    最小靈敏度 -31dB (@40 kHz, 0 dB-1 V/µbar) 相當於流量 10-3 std. cm3/sec.
    環境
    工作溫度範圍 -10 to +50 °C (14 to 122°F)
    防護等級 IP42
    設備
    材料和重量 ABS, 200g /7.05oz
    尺寸大小 158x59x38.5 mm (6.22”x2.32”x1.51”)
    連接器長度(包括可更換的感測器) 445 mm /17.51”
    電源
    電池 2個5號電池
    待機 4 小時
    音訊
    增益 -24 to 0 dB in steps of 6 dB
    最大輸出 +83dB SPL with 25dB NRR Peltor HQ SDT 耳機
    • Compressed air leaks are a senseless waste of energy. Find and fix them fast with SDT LEAKChecker; an ultrasound solution focused on reducing waste and saving you money.
    • LEAKChecker is so easy to use. Simply open the box, switch it on, and start finding leaks. Enjoy crystal-clear sound in the headset and a vibrant colour display. LEAKChecker makes leak surveying fun again.
    • Air leaks are an expensive problem… and LEAKChecker is the affordable solution. Built with SDT quality, it’s offered at a price that will leave you speechless.
  • General

    Function

    Ultrasound measurement device

    Display

    160x128 pixels Color OLED

    Keyboard

    5 function keys

    Typical measurement range

    -6 to 99.9 dBµV (reference 0 dB = 1 µV)

    Resolution

    0.1 digits

    Measurement bandwidth

    35 to 42 kHz

    Signal amplification

    +30 dB to +102 dB by step of 6 dB

    RMS period time

    250 milliseconds (main screen)

    Sampling frequency

    64 kHz

    ADC Resolution

    12 bits

    Minimum sensitivity

    -31dB (@40 kHz, 0 dB-1 V/µbar)

    Environmental

    Operating temperature range

    -10 to +50 °C |14 to 122°F

    IP rating

    IP42

    EMC approvals

    EN 61326-1:2013, EN 55011:2016 + A1:2017, EN 61000-4-2:2009, EN 61000-4-3:2006 + A1:2008 + IS1:2009 +A2:2010

    Mechanical

    Housing material

    ABS

    Dimensions housing

    158x59x38.5 mm |6.22”x2.32”x1.51”

    Flexible rod length (Removable sensor)

    445 mm |17.51”

    Weight

    350g | 12.35 oz

    Battery/Utility connector

    USB Mini-B 5-pin

    Power

    Battery

    2 AA batteries

    Autonomy

    7 hours

    Audio

    Operable with

    SDT provided head set only

    Maximum audio output (protection)

    +83dB SPL with SDT headset

    Headset

    25dB NRR Peltor HQ headset
